Y-Tech High-Quality Connect Pipe Clamps

速接管夾 / Y-Tech 速接管夾 小管徑實績圖
Full stock available, free international shipping and fast delivery.
Zero use of recycled rubber. Top-notch lifespan and sealing performance!

Still connecting pipes the slow way with welding and flanges?

速接管夾 / 傳統配管方式,焊接以及鎖法蘭

Try the Y-Tech Connect Pipe Clamps for a super fast and easy experience!

速接管夾 / Y-Tech 速接管夾 配管示範圖

Why is Y-Tech Connect Pipe Clamps your best choice for pipe connection?

Compared to traditional methods, Y-Tech connect pipe clamps can save 90% of time and over 65% in costs. Overall weight is reduced by 30% compared to flanges while volume is decreased by 50%.

Repair MethodTraditional Method (Welding, threading)Traditional Method (Flanges)Y-Tech Connect Pipe Clamps
Steps RequiredWelding
or
threading & grooving
Weld flange 1Install pipe clamp with wrench
Weld flange 2
Screw 8~12 bolts
Space RequiredLarge space required for workLarge space required for work and flange placementSmall space required
Time RequiredMore than 10 minutes per connection10 minutes to few hours5 minutes
Labor1 ~ 2 persons, welders required1 ~ 2 persons, welders required1 person, no training required
Costslabor, welding material, welding machine, threading and grooving machinelabor, flange, welding material, welding machinePipe clamp only
DurabilityDepneds on quality of work. Might become point of leakage if handled poorlyDepneds on quality of work. Might become point of leakage if handled poorly15 ~ 20 years minimum
ConnectabilityCertain materials not applicable or hard to applySpecific flange needed for different pipe materialEasily connects pipes of different material

No need for welding, threading or grooving. Pipelines can be connected in just 5 minutes using only a wrench.

How do you want your pipes connected?

1. Rough and unreliable welding

1. Rough and unreliable welding

or

2. Patented technology specifically developed for pipe connection

Leaked liquid flows to both sides of the rubber, creating pressure and sealing the pipe clamp downward.

2. Patented technology specifically developed for pipe connection

Installation can be completed as fast as 30 seconds with only a wrench

* Threaded pipe in video is used only for demonstration purposes, actual installation does not require threaded or grooved pipes!!

7 reasons why you should choose Y-Tech

1. Industry-Leading Brand: The foremost brand in the industry, known for our stable and reliable quality. Safety and durability are unmatched, far superior to low-cost, inferior products from mainland China.

2. High-Quality Rubber Lining: Utilizes high-quality rubber lining, with absolutely no use of recycled rubber. Number one in terms of lifespan and sealing performance.

3. High Visibility and Approval: Widely recognized and approved by major enterprises across Taiwan.

4. Comprehensive Product Range and Sizes: The most extensive selection of items and sizes, with the fastest delivery available—free of charge the next day.

5. High Pressure Resistance: Capable of withstanding pressures exceeding 40 kg/cm².

6. Versatility: Suitable for use with strong acids, alkalis, fluids at various temperatures, and gases.

7. Excellent Quality at Affordable Prices: Outstanding quality combined with reasonable pricing.

Y-Tech helps solve your problem instead of createing a new one!

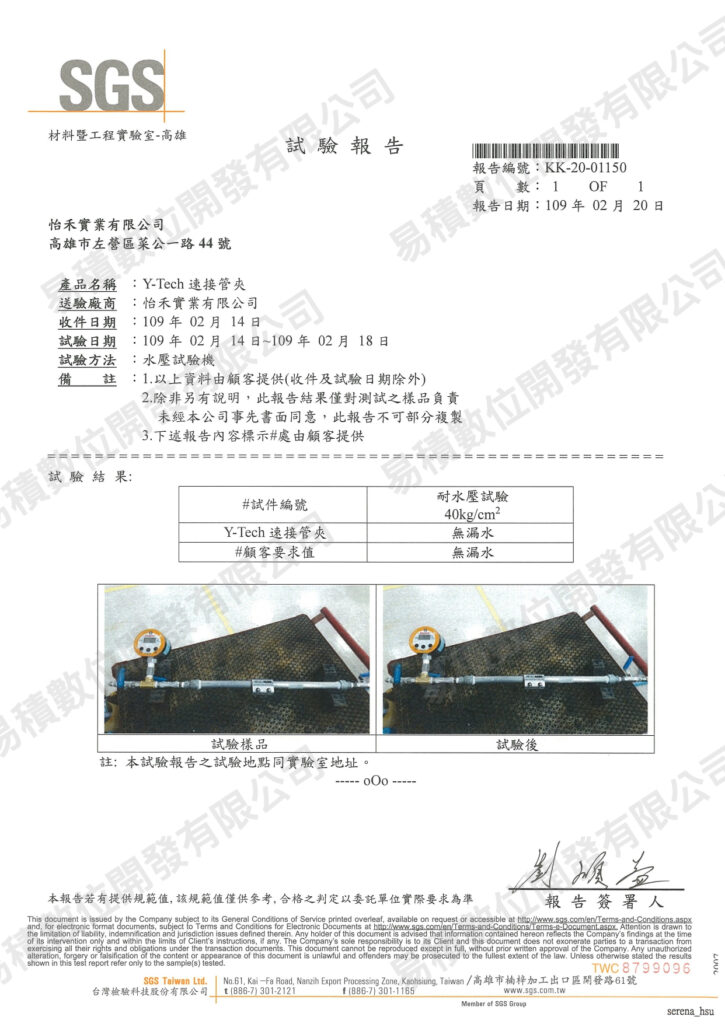

SGS certified reports show no leakage under 40 kg/cm² pressure with Y-Tech connect pipe clamps !

Traditional piping projects typically involve methods such as welding, flange connections, and threading. Now, you have a faster and more cost-effective solution.

Y-Tech high-quality connect pipe clamp is designed to replace traditional flanges. It reduces the overall weight by 30%, decreases the volume by 50%, and allows for a 2% difference in the diameters of two connected pipes. Connecting pipes made of iron or plastic is no longer an issue!

The clamps are versatile and can be used with any type of pipe material, including stainless steel, iron, copper, PVC, and ABS.

Our connect pipe clamps require no welding or secondary processing, making them convenient, time-saving, and capable of withstanding vibrations and pipe alignment deviations. This method is the most time and cost-efficient for pipe connections.

Widely used in applications such as water treatment, machinery, HVAC, fire protection, compressed air, gas, particles, powders, and even vacuum suction!

If you have any questions about pipe diameters, feel free to contact us.

SGS Certified Products

Not your typical made in China low-quality products!

Designated partner of industry leading companies and trusted for our quality and effectiveness .

panosonic

Many pipe clamps on the market are low-cost and low-quality products made in China, and is prone to re-leak in a short period.

Clients complain pipe clamps bought elsewhere are hard to use and leaking after only a short period.

Low quality clamps started to rust and leak after only a short use. Wasting time and money.

All public institutions and government tenders in Taiwan have explicitly prohibited the use of pipe clamps manufactured in mainland China for bidding.

Unscrupulous companies often mix inferior products from China with others. How can you distinguish them?

Y-Tech: clear labeling

Clearly label the pressure tolerance, applicable pipe sizes, and rubber specifications.

China: no labeling

Unable to determine the pressure tolerance and rubber type.

速接管夾 / Y-Tech 速接管夾 與他牌標示差異比較

Y-Tech: weld points deep and tight

Robust structure use with confidence even under high fluid pressure.

China: weld points shallow and sparse

Weak structure prone to break under pressure.

速接管夾 / Y-Tech 速接管夾 與他牌焊點差異比較

Y-Tech: precise diameter

The maximum inner diameter of the 2" pipe clamp is 64mm, allowing for easy insertion of the standard 2" pipe (60.5mm).

China: incorrect diameter

The maximum inner diameter of the 2" pipe clamp is only 57mm, impossible to insert the standard 2" pipe (60.5mm).

Y-Tech: reinforcing stainless steel sheet

Reinforced with stainless steel inserts, significantly enhancing its tolerance to temperature, pressure, and negative pressure.

China: no reinforcing steel sheet

No reinforcement steel sheet; the rubber is prone to deformation after extended use.

速接管夾 / Y-Tech 速接管夾 與他牌不鏽鋼強化片差異比較

Y-Tech: torque indicator disc

Bolts are equipped with a special torque indicator disc to prevent over-tightening or loosening.

China: no torque indicator

No torque indicator disc; must rely on a sense of feel through repeated trials.

速接管夾 / Y-Tech 速接管夾 與他牌扭力提示片差異比較

Y-Tech: serrations deep and tight

Multiple deep serrations on both sides, grips pipes securely without loosening even at special angles.

China: serrations flat and sparse

Serrations on both sides are few and shallow. Likely to come loose with high pressure.

速接管夾 / Y-Tech 速接管夾 與他牌鋸齒結構差異比較

Installation examples

速接管夾 / Y-Tech 速接管夾 耐壓測試實績圖

Pressure testing for 5" and 6" pipelines.

Pressure testing is required before adoption in electronics factories.

速接管夾 / Y-Tech 速接管夾 壓力測試圖

High pressure resistance without leakage.

Pressure test of 40kg/cm2 or above.

速接管夾 / Y-Tech 速接管夾 大樓送水管實績圖

2-1/2" water supply pipe for residential building.

Residential use of connect pipe clamps for a fast and orderly installation.

速接管夾 / Y-Tech 速接管夾 部分管路更換實績圖

4" underground water supply pipe.

Partial pipeline replacement using connect pipe clamps, suitable even in damp environments.

速接管夾 / Y-Tech 速接管夾 汙水池實績圖

4" and 6" sewage tank pipes.

The use of connect pipe clamps allows for easy disassembly, making pipeline cleaning very convenient.

Y-Tech Connect Pipe Clamps

速接管夾 / Y-Tech 一般型 速接管夾 產品圖
Standard Type
速接管夾 / Y-Tech 加長型 速接管夾 產品圖
Standard Type Long

Installation

1. Distribute the length of the pipe clamps evenly.
2. Place the pipe clamps at the joints of the pipeline.
3. Tighten the pipe clamps.

Structure and material

速接管夾 / Y-Tech 速接管夾 構造圖
Rubber Type Characteristics

EPDM

  • Aging-resistant, ozone-resistant, electrical-resistant
  • Operating temperature: -30 to 120°C
  • Suitable for: water, air, powder, alkalis

NBR

  • Oil-resistant, wear-resistant, aging-resistant
  • Operating temperature: -25 to 100°C
  • Suitable for: oil, gas, water

SILICONE

  • Heat-resistant, resistant to harsh environments
  • Operating temperature: -70 to 250°C
  • Suitable for: hot water, steam

VITON

(FKM/FPM)

  • Chemical-resistant, resistant to pharmaceuticals
  • Operating temperature: -30 to 250°C
  • Suitable for: acids, chemicals

FAQ

What is the durability/lifespan of the pipe clamp?

Under normal operating conditions, the durability/lifespan of the pipe clamp can reach 15 to 20 years or more.

Will connect pipe clamps loosen due to earthquakes or shaking?

Pipe clamps feature serrated structures on both sides, allowing for secure grip on the pipeline and will not loosen even during earthquakes or vibrations.

Are pipe clamps reusable?

Yes they are reusable.

How do I select the required specifications?

Please measure the outer diameter of the pipe you intend to use and visit the connect pipe clamp specification page to select the appropriate specifications. If you are unsure about the specifications, you can consult directly with our sales representative.

What are your region of sales?

Currently we are able to provide service and free international shipping to the following countries and regions: Hong Kong, Vietnam, Thailand, Singapore and Malaysia.

Is there a minimum order quantity?

No. There is no minimum order quantity.

When is the earliest possible delivery date?

Product will be shipped on the day of orde if stick is available. Actual delivery date depends on shipping and custom condidtions.

Do I need to pay for shippping?

No. We offer free international shipping to all our sales regions.
